S.T.A.R. VS7550 VUV/UV Mini Spectrograph Spectrometers

The VS7550 is a miniature Czerny-Turner spectrograph with excellent speed, spectral range and spectral resolution with software control of slit size, input f#, order sorting filters, grating angle and dark exposures.  For VUV operation, the spectrograph has a UHV window and laminar flow purge system, which allows operation down to the window short wavelength cut-off (112 nm for MgF2).  Small enough to fit in your hand, it can be fully operational in any orientation at the end of a 5-meter cable.  Accessories include a built-in spectral calibration lamp, a multi-spectral field flat light source and low-cost accessories such as telescopes, vacuum adapters, and flow controllers.
Copyright Resonance Ltd., December 2011 143 Ferndale Drive North, Barrie, ON L4N 9V9       Tel: 705-733-3633         Fax: 705-733-1388      Email:sales@resonance.on.ca
Contact us for more information
Specification Focal Length (input) Focal Length (output) Wavelength Range (depends on grating) Wavelength Accuracy CCD QE for 110 - 400nm CCD QE for 400 - 930nm CCD QE for 930 - 1050nm Best Spectral Resolution 3600 grating first order Available Gratings Wavelength Range Wavelength Resolution Software selectable slits Order sorter Dark shutter Software selection of spectral range Software selection grating aperture Detector UHV option Connection
Minimum 76.0 44 104 - 10 15 3
Typical/Median 76.2 45 - ± 0.1 18 0.12
Maximum 74.4 46 1100 - 20 42 15
Units mm mm nm nm % % % nm
From 600 - 4200 grooves per mm Up to 5 frames of 100 - 500nm spanning from 100 - 1100nm <0.25nm in center of field with 3600 grooves per mm grating Typical range of resolution is 0.1 - 2mm No filter, 200, 300 and 600 nm long pass filters Automatic dark exposures wien +dark button selected 3600 l/mm grating 110 - 315 (2 steps) 1200 l/mm grating 110 to 950 (5 steps) Effective range of f/# 3.2 - 8.4 2048 pixel linear array with VUV/UV phosphor Window adapter with 2.75” ConflatTM flange Two USB 2.0 cables for data, power and servo control
Electrical/Optical
Home Products Services Downloads Library Heritage Contact
Max Wavelength 100-290 100-340 100-420 100-500 100-680 100-1080 100-1100
1st Order Max Resolution 0.11 0.13 0.16 0.2 0.27 0.45 0.6
Min# frames shortest to longest wl VUV 3 3 3 3 4 5 6
Grooves/mm 4200 3600 2880 2400 1800 1200 900
Wavelength Range (grating dependent)

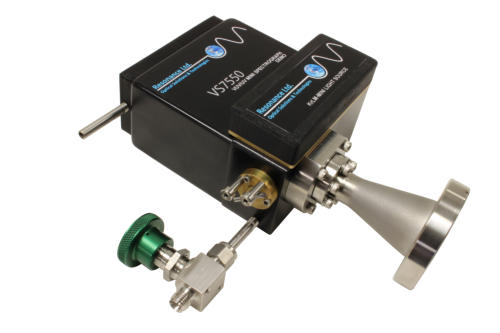

With Optional KrLM Mini Light Source
Spectrometers Light Sources Remote Sensors Systems Photoionization (PID) Lamps PID Kits Calibration Cells Detectors

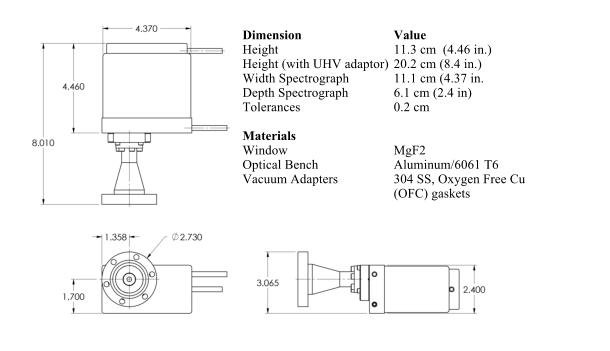

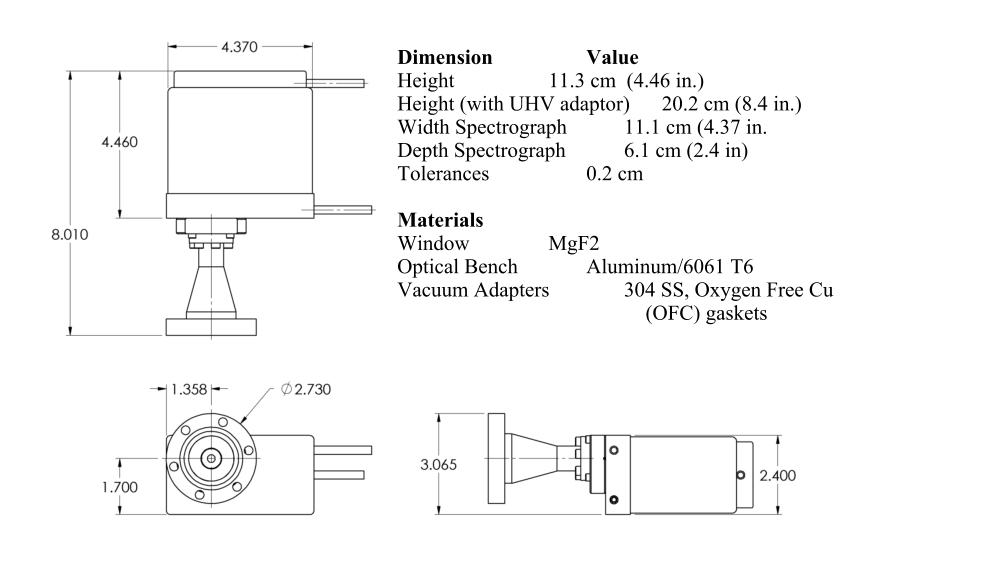

Focal Length Available Gratings Wavelength Range f# Wavelength Resolution Blur (tangential/sagittal) Detector Mass (without vacuum adpt.) Dimensions
50mm 1200, 1800, 2400, 2880, 3600 or 4200 G/mm 10 step of 100-150nm from 115nm -1100nm (depending on selected grating) 3.3 0.12nm in centre of field w/3600 G/mm grating 0.15/0.01mm 2048 pixel linear array 500g 111mm x 94mm x 59mm
