High Power Lamps

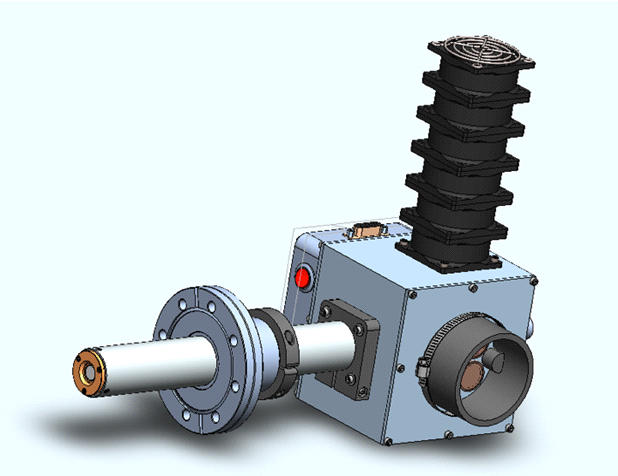

High-Power VUV Light Sources: Model Numbers KrCM-LHP, XeCM-LHP

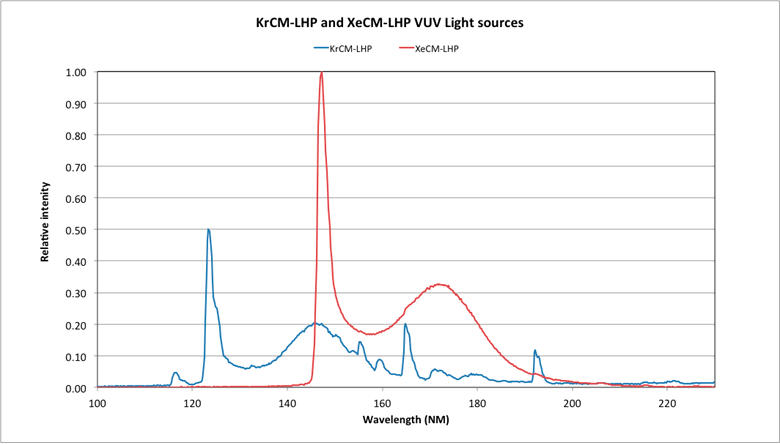

This RF powered lamp system is a reliable and maintenance-free high intensity source of deep VUV emissions between

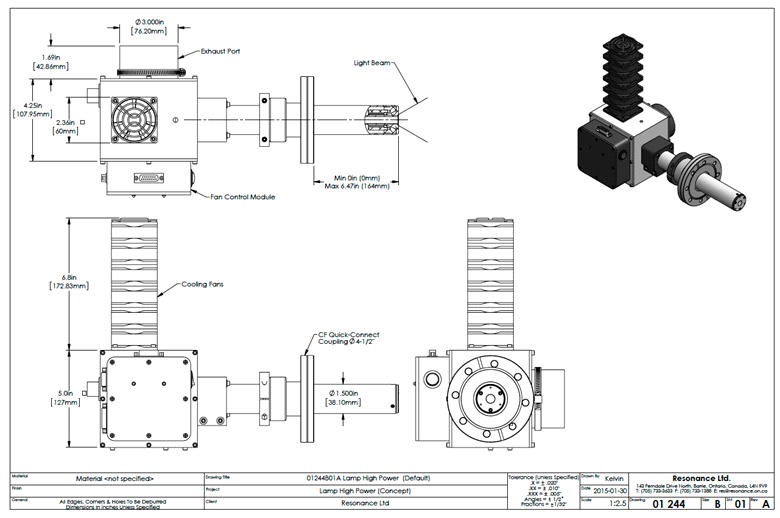

116 and 200 nm. This source mounts to a 4.5-inch CF flange for easy connection to a high-vacuum system. The lamp is

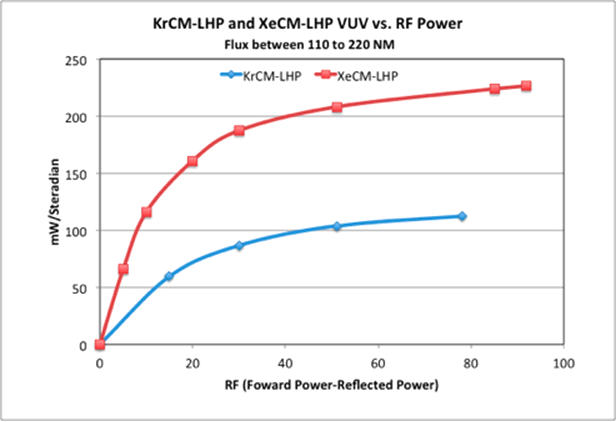

re-entrant to allow optimum positioning. VUV fluxes greater than 100 milliwatts/sterad are delivered through the MgF2
window for vacuum applications such as photoionization TOF mass spectroscopy. Lamp bulbs are interchangeable for
easy replacement. The temperature-controlled high-speed fan eliminates the need for water cooling. Normally this
source will operate with either a Krypton or Xenon Bulb. These bulbs are interchangeable and other bulbs and or fill
pressures are available on a custom basis.
